WinLauncher:  Setup - 1 Time Options

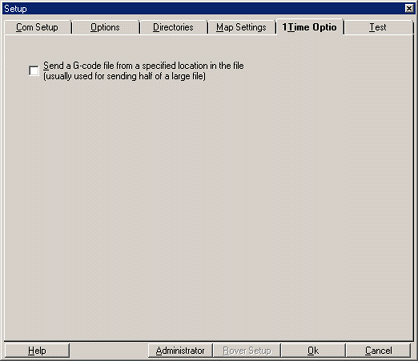

Sometimes, you may encounter difficulties sending very large G-code files to CNCs.  Your computer may not be able to send the complete G-code file.  In this case, use the "1 Time Options" of the WinLauncher Setup to set the mid-tape location in your G-code file from where you want to start the transfer.

1.  Click on the first box to select "Send a G-code file from a specified location in the file"

2.  Enter a search string from where you want to start sending the G-code.  Example: the string could be your line number (eg: N255).

3.  Click the OK button at the bottom of the window.

4.  Proceed with the normal steps for sending a G-code file to CNC.
